Recyclable HDPE tank
6-way valves
Flow rate from 10m³ to 30m³
Warranty 10 years
Tank
Valve
A pool filtration system works by circulating water through a filter that captures impurities, returning clean water to the pool.
A sand filter is efficient, low-maintenance, and cost-effective. It captures particles while maintaining good water circulation.
The filtration capacity depends on the pool size. Generally, a filter should be able to cycle all water within 4 to 6 hours.
A sand filter should be cleaned regularly (every 2 to 4 weeks), and the sand replaced every 3 to 5 years.
The choice of filter depends on pool size, budget, and frequency of use. A sand filter is a good choice for most residential pools.

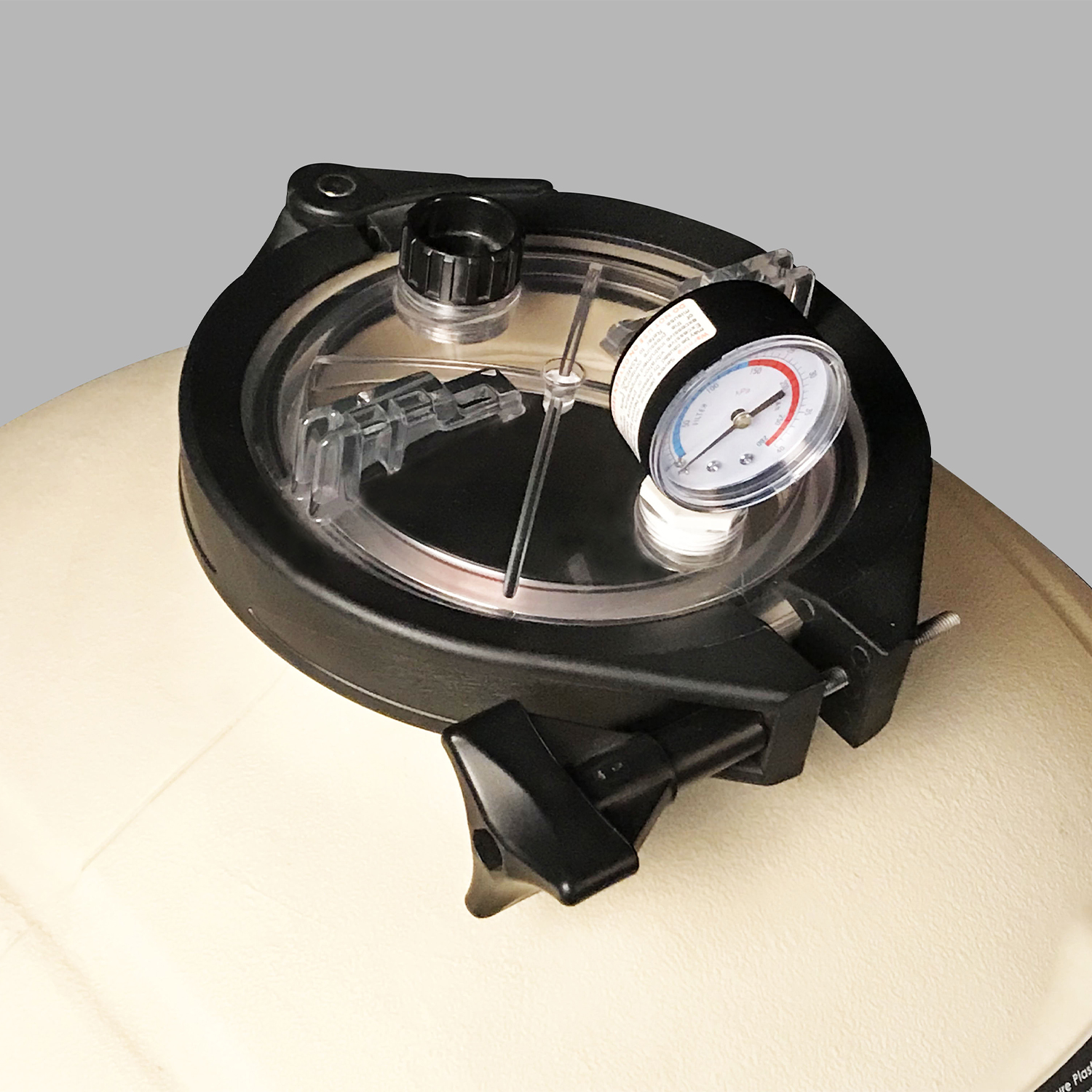

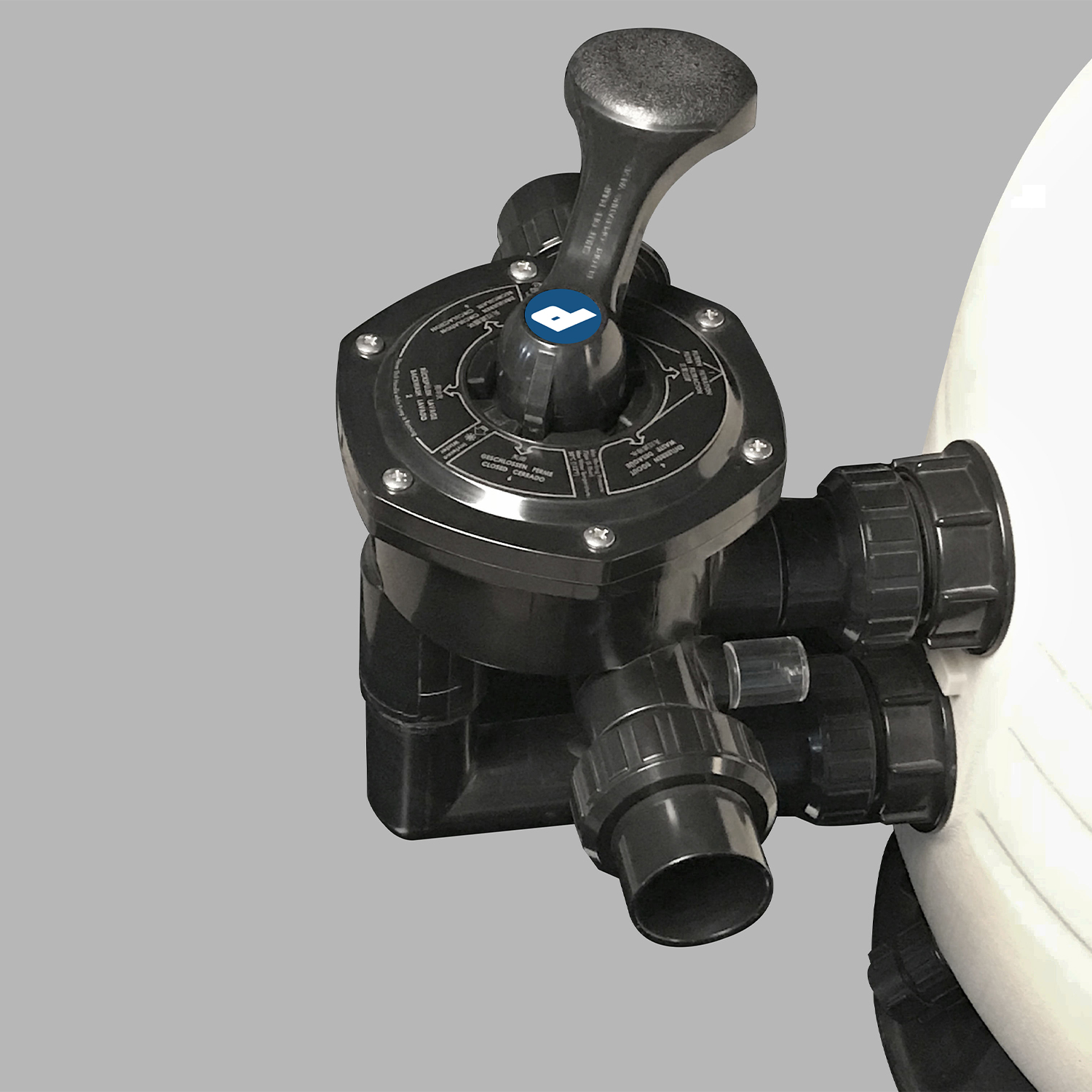

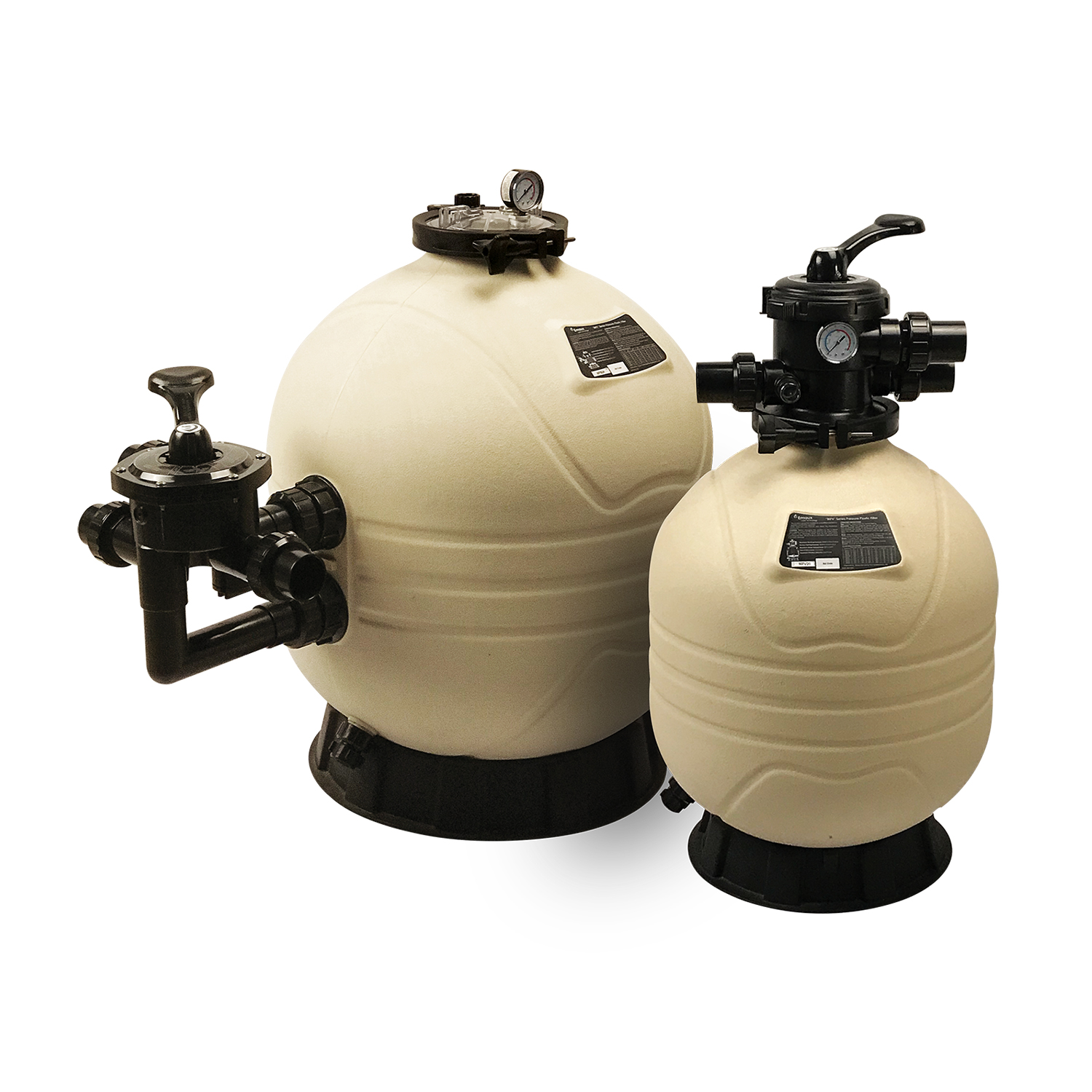

With a maximum operating pressure of 2.8 bar (40 PSI), integrated pressure gauge, reinforced design, and recyclable HDPE tank, Ultra Top and Ultra Side deliver superior performance. They feature a clamp with screw locking for easy installation and tool-free maintenance. They are equipped with a 6-way multiport valve built with robust ABS and stainless steel.

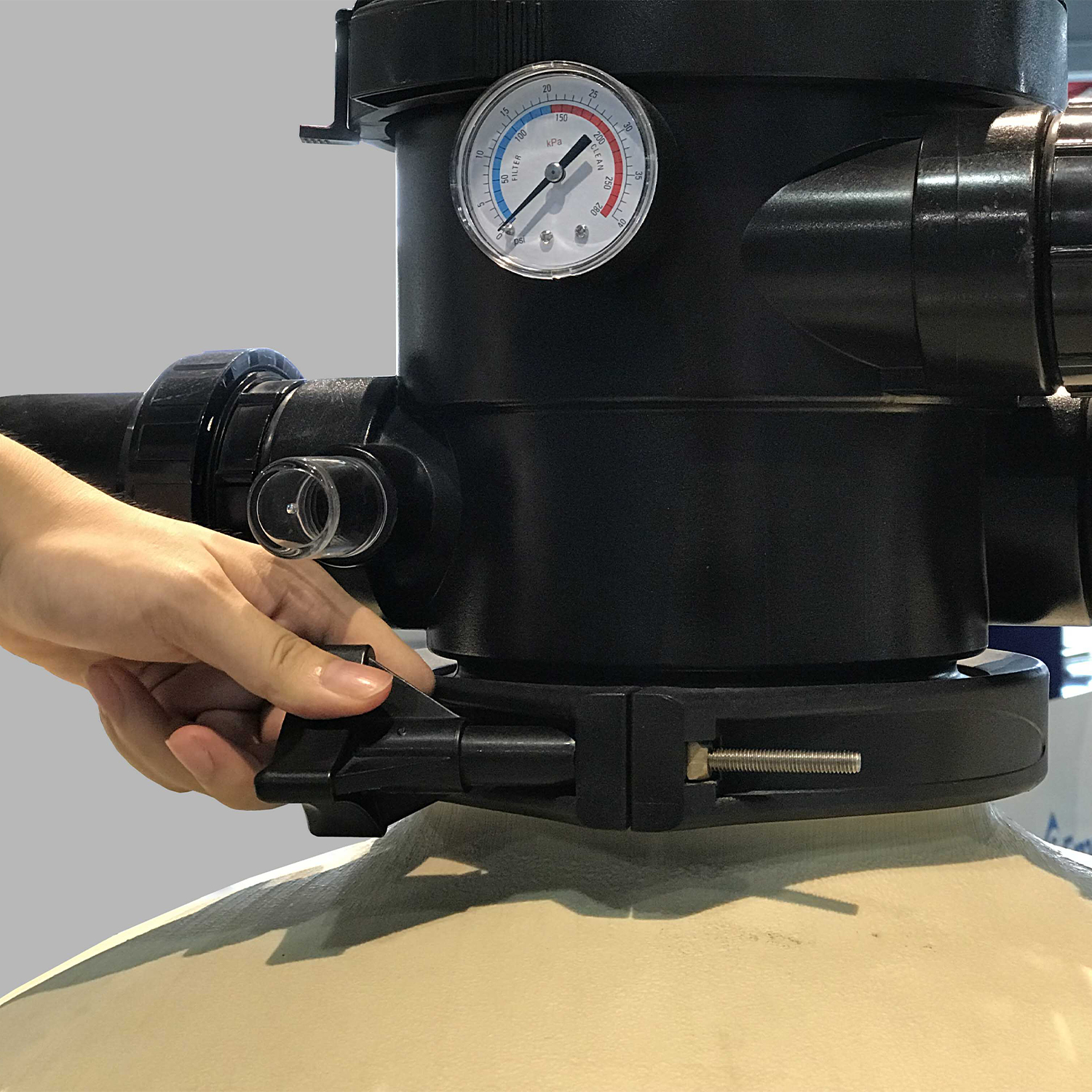

The clamp with screw locking greatly simplifies installation and allows for tool-free maintenance, which is a considerable advantage for users. Additionally, these filters are equipped with a 6-way multiport valve, made of robust Acrylonitrile Butadiene Styrene (ABS) and stainless steel. This construction ensures exceptional durability and optimal functionality, even in demanding environments.
Ultra Top & Ultra Side filters embody the pinnacle of filtration technology. With robust construction, these filters withstand high pressures, ensuring exceptional durability even in the most demanding environments. The advanced filtration technology relies on specially designed elements to effectively remove impurities, fine particles, algae, and other contaminants from the water, creating unparalleled purity.
Furthermore, simplified maintenance makes cleaning and element replacement easy, minimizing downtime. These filters are compatible with various filtration pumps, offering easy integration into different existing filtration systems while maximizing energy efficiency to reduce operating costs.
These filters are suitable for a variety of applications, from residential pools to public aquatic complexes, offering exceptional filtration, unparalleled longevity, and ease of maintenance, making them the ultimate choice for those demanding superior water quality.

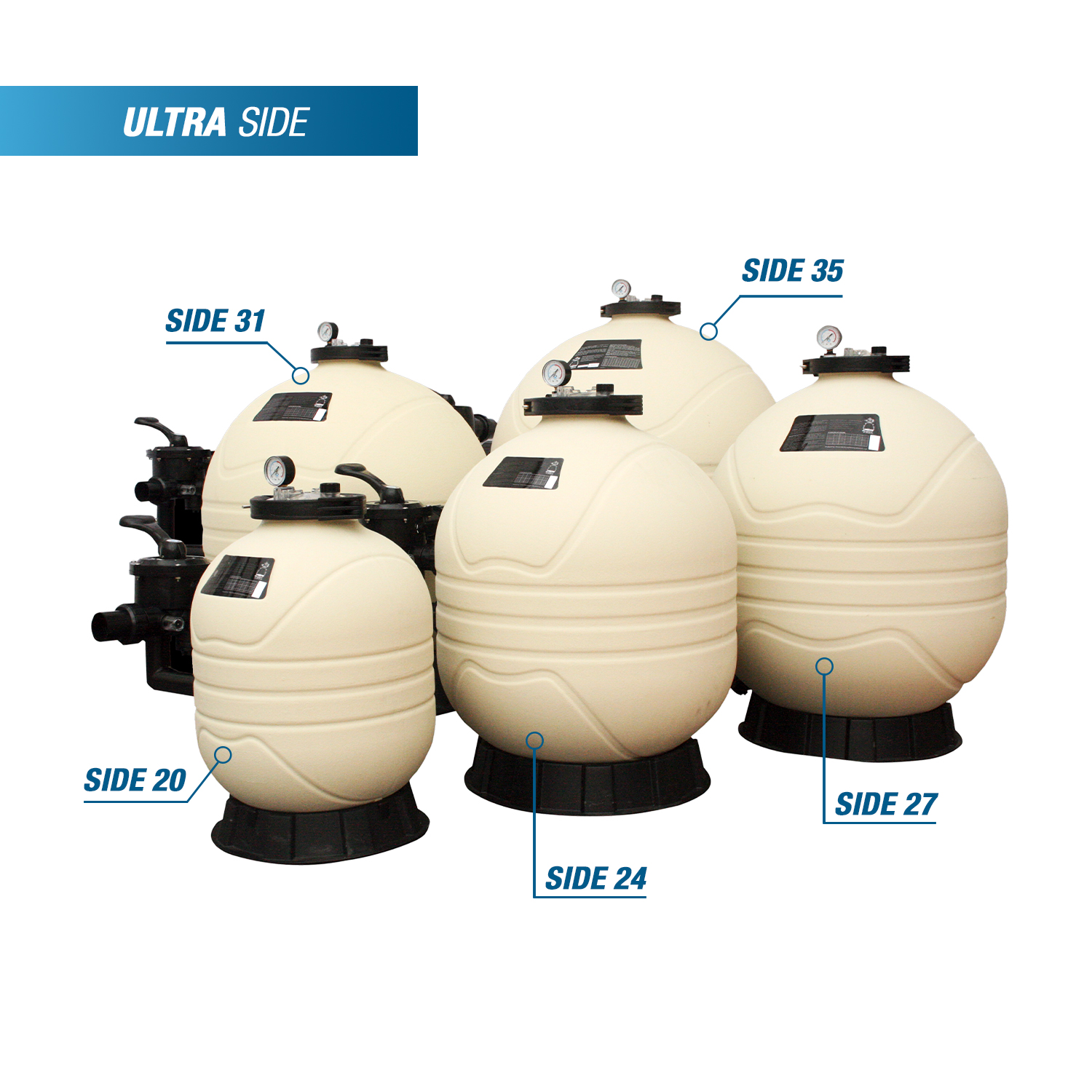

| SIDE 20 | SIDE 24 | SIDE 27 | SIDE 31 | SIDE 35 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Reference | PF-ULT500S | PF-ULT600S | PF-ULT675S | PF-ULT775S | PF-ULT875S | ||||||
| Maximum Flow Rate (m³/h) | 10 | 14 | 18 | 23.5 | 30.5 | ||||||
| Filtration Surface (m²) | 0.20 | 0.28 | 0.36 | 0.47 | 0.61 | ||||||
| Addressable Volume (m³ in approximate 6h time) |
60 | 80 | 100 | 140 | 180 | ||||||
| Inlet / Outlet Connections | 1.5" / 50mm | 2.0" / 63mm | |||||||||
| Diameter (mm) | 500 | 600 | 675 | 775 | 875 | ||||||
| Sand (kg) / Glass (kg) | 70 / 55 | 125 / 100 | 185 / 150 | 320 / 255 | 430 / 345 | ||||||
| Dimensions (AxBxC) | 396 x 549 x 760 | 430 x 493 x 825 | 460 x 546 x 946 | 508 x 594 x 968 | 546 x 650 x 1086 | ||||||
| Dimensions (DxExF) | 225 x 500 x125 | 280 x 600 x 125 | 300 x 675 x 130 | 370 x 775 x 130 | 440 x 875 x 130 | ||||||
| Warranty | Tank: 10 years / Valve: 3 years | ||||||||||

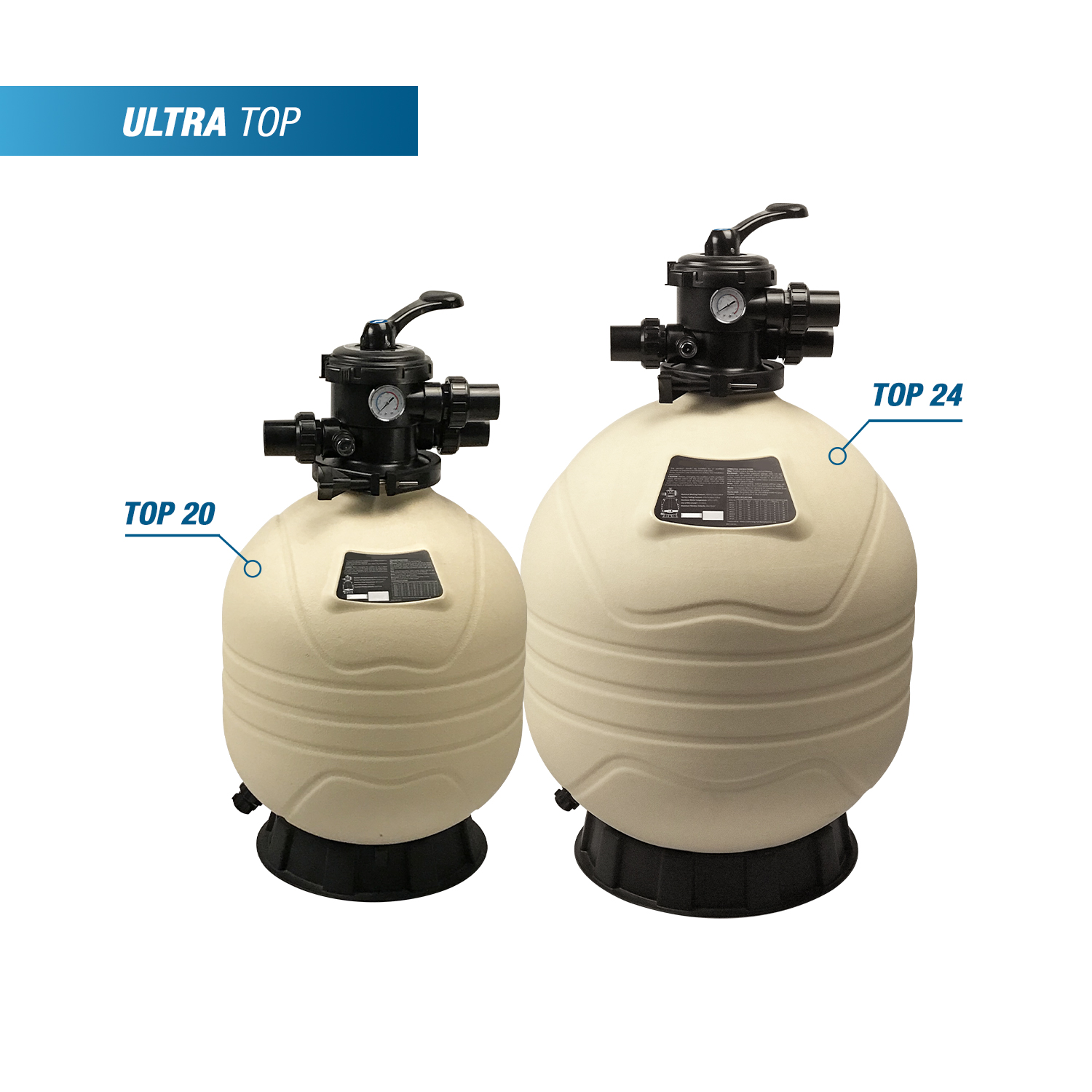

| TOP 20 | TOP 24 | |||
|---|---|---|---|---|
| Reference | PF-ULT500T | PF-ULT600T | ||
| Maximum Flow Rate (m³/h) | 10 | 14 | ||
| Filtration Surface (m²) | 0.20 | 0.28 | ||
| Addressable Volume (m³ in approximate 6h time) |
60 | 80 | ||
| Inlet / Outlet Connections | 1.5" / 50mm | |||
| Diameter (mm) | 500 | 600 | ||
| Sand (kg) / Glass (kg) | 70 / 55 | 125 / 100 | ||
| Dimensions (AxBxC) | 889 x 772 x 712 | 980 x 860 x 800 | ||
| Warranty | Tank: 10 years / Valve: 3 years | |||
