Product Highlights

Silent SCOP A

Why Choose the Variline for Pool Filtration?

Optimize your pool heat pump performance with a variable-speed filtration pump.

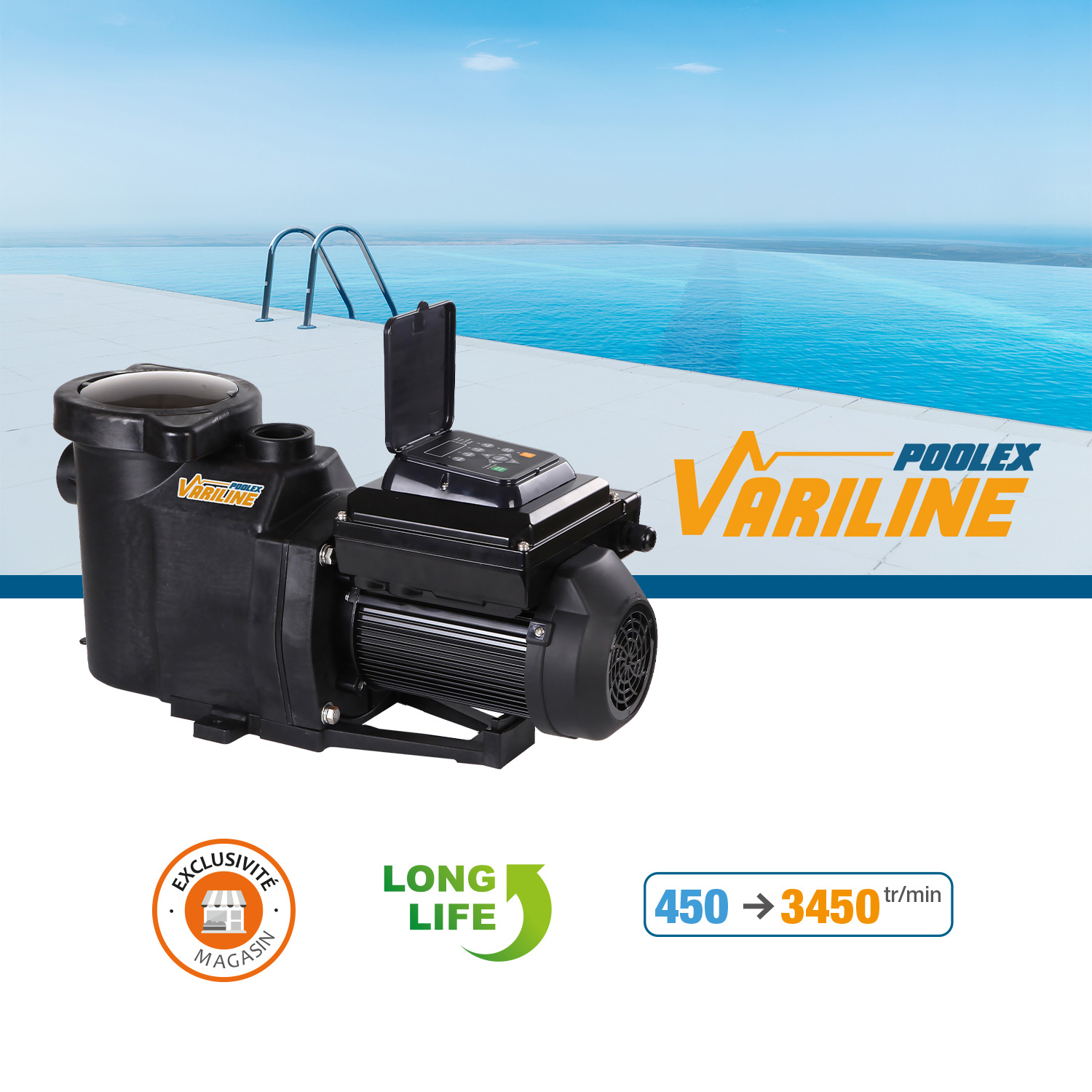

The Variline filtration pump operates with 4 programmable speeds, adjusting the filtration flow based on the season and pool usage: low-demand periods, intensive use, after shock treatments, or for backwashing. The program can be set with a simple press on the control panel, making pool filtration easier and more intuitive.

Thanks to its ability to adjust speed as needed, the Variline operates within frequency ranges for up to 18 hours a day. For proper filtration, pool water should go through a cleaning cycle up to 3 times daily. Filtration pumps are typically the highest energy-consuming component in a pool system.

By equipping your pool with a variable-speed pump, water is circulated through the hydraulic system and sand filter at a slower pace for more effective filtration. Operating consistently at low speed, the Variline significantly reduces energy consumption.

Moreover, when used with a heat pump, constant water circulation allows for quicker temperature increases, saving energy in the process.

Another significant advantage is improved filtration quality. Lower flow rates allow water to pass through the sand filter more slowly, resulting in cleaner, better-filtered water and reduced chemical treatment costs.

Built-in Wi-Fi Connectivity for Simplified Management

The Poolex Variline is equipped with integrated Wi-Fi connectivity, allowing remote control from your smartphone or tablet. Through an intuitive app, you can adjust filtration speeds, schedule cycles, and monitor pump performance in real time, no matter where you are.

This feature offers total flexibility to tailor filtration to your pool’s needs while optimizing energy consumption. Combining comfort and technology, Wi-Fi connectivity transforms pool management into a simple and modern experience.

Exceptional SCOP A for Optimal Filtration

With its SCOP A rating, the Poolex Variline delivers unparalleled energy efficiency. This performance coefficient reflects its ability to consume less energy while maintaining consistent and effective filtration.

The result: a clean pool, reduced electricity bills, and an environmentally friendly solution. Perfect for those seeking an economical and eco-responsible option.

Large Capacity Pre-filter

The Variline filtration pump features a large-capacity pre-filter with two main advantages.

It facilitates priming the filtration pump.

A large pre-filter captures larger particles before water is sent to the sand filter for more optimal filtration.

Intuitive Control Panel

The Variline is equipped with an intuitive control panel.

This variable-speed filtration pump is factory-preprogrammed with cycles tailored to pool needs, including filtration, backwashing, high usage periods, and more. You can also customize programming based on your pool usage and other equipment, such as a heat pump.

The intuitive control panel guides you through each programming step.

4 Programmable Settings

The Variline filtration pump includes 4 preset programs that optimize water circulation and filtration.

For optimal filtration, it adjusts its speed over 18 hours with variable frequency settings. Continuous but low-speed water circulation improves water quality, reduces energy consumption by avoiding usage peaks, and significantly limits noise levels for a quieter pump.

Perfect Replacement for a Single-Speed Pump

If it's time to replace your traditional pool filtration pump, the Variline is the ideal choice.

As a variable-speed pump, this pool equipment operates more consistently while adjusting its speed to meet filtration demands. Energy consumption peaks are avoided, filtration is more sustainable, and energy usage is significantly reduced.

Model Variline 15H Variline 10P Variline 15P Variline 20P Variline 30P
Pool volume (m3) 75 50 75 85 100
Useful power (CV) 1.5 1.0 1.5 2.0 3.0
Connector diameter 1.5’’x1.5’’ 2"x2"
Motor type Permanent magnet synchronous
Output 80%
Speed modulation 450 - 3450 tr/min
Flow at 10 mce (m3/h) 17.5 19 22 24.3 28.2

Max. flow (m3/h)

 21 23 27 29 33.3
Max. dynamic head (m) 22 24 25 26
Power supply Mono 230 V - 50 Hz
Dimensions in mm (L x W x H) 596x270x306 605x270x338
Max. current (A) 5.5 7 8 10
Warranty 3 years


Filter pump


Advice

We answer your questions

coefficient of performance, choosing a heat pump, pool water.

The yield of a heat pump is referred to as the coefficient of performance or COP. The COP is easily calculated: it is the ratio of power output to power consumption.

E.g. A heat pump consuming 1 kW and having a power output of 5 kW has a COP of 5/1 that is 5. The higher the number, the better the performance of the heat pump!

The exterior conditions such as the temperature and humidity of the air cause the power output to vary. Refer to our guide '"Choosing your heat pump' on p. 6/7

Our heat pumps are checked according to the measuring conditions set out by the Fédération des Professionnels de la Piscine (Federation of Pool Professionals - FPP). They comply with the European standards: Air at 26 °C, water at 26 °C, 80 % humidity; Air at 15 °C, eau at 26 °C, 70 % humidity.
