- Electric stove -
- Wall positioning -

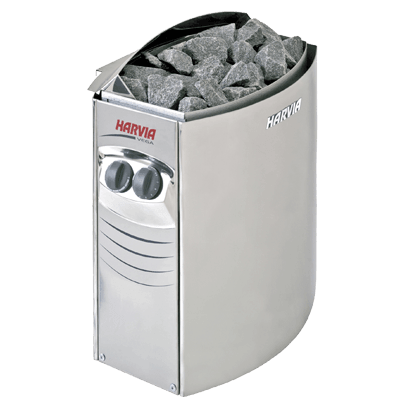

Harvia Vega is an elegant stove and easy to use. The stainless steel casing gives your sauna a modern appearance. The controls are ergonomically placed at the top, on the side of the stove, for easy use.
Vega is easy to install on a separate wall mount. Thanks to its symmetrical design, this stove can be easily used on one side or the other. Electrical connections are made from the stove side, which simplifies installation.
Thanks to its structure, the Vega stove can be mounted low on the wall of the sauna. The heat can be evenly distributed in the sauna and also in quantity to the lower benches. Vega stoves are controlled by an integrated control unit.
| Type | Electric stove | ||
|---|---|---|---|
| Power | 4,5 kW | 6 kW | 8 kW |
| Recommended volume (min-max) | 3 - 6 m3 | 5 - 8 m3 | 7 - 12 m3 |
| Min. Sauna height | 190 cm | ||
| Dimensions (L x p x H) | 480 x 310 x 540 mm | ||
| Weight (without stones) | 11 kg | ||
| Max. capacit | 20 kg | ||
| Electricity supply | 230 V 1N~ / 400 V 3N~ | ||
| Cables | 3 x 4m2 / 5 x 1,5m2 | 3 x 6m2 / 5 x 1,5m2 | 3 x 10m2 / 5 x 2,5m2 |
| Fuses | 1 x 16A / 3x 10A | 1 x 16A / 3x 16A | |
| Safety distance : A - Wall B - Inf. platform C - Sup. platform D - Ceiling E - Floor |
35 mm 20 mm 35 mm 1100 mm 100-200 mm |
50 mm 30 mm 50 mm 1100 mm 100-200 mm |
100 mm 30 mm 80 mm 1100 mm 100-200 mm |
*All content (texts, images, descriptions, technical data) is non-contractual and therefore subject to change without notice.
